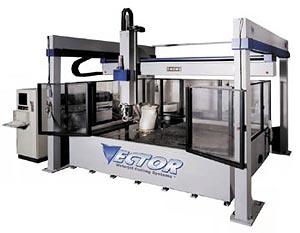

Integrated Process Systems: Waterjet Cutting Systems for Aerospace & Marine Applications  PaR
Systems' Vector® Waterjet Cutting System is a fully integrated
five axis cutting system using high pressure water and abrasive to
cut virtually any material. Five axes of integrated motion allow the
cutting head to maintain tool normality to the part surface maintaining
part accuracy.
The Vector®
Waterjet Cutting System is controlled by PaR System's CIMROC®
5/21 controller, which provides the precision motion control necessary
for complex five axis cutting. The CIMROC® 5/21 is a PC-based,
open architecture controller with a Windows® operating system
making it user-friendly. The Vector® comes standard with a teach
pendant to allow manual positioning within the work cell. The system's
ability to perform full 4x4 part transformations to accurately reposition
parts in the work envelope makes it ideal for long parts and adjustable
fixturing. PaR Systems takes advantage of the technological advancements made by KMT (formerly Ingersoll Rand) in the area of high pressure delivery systems by integrating the Vector® with KMT intensifier pumps and cutting heads. Our customers benefit from 60,000 PSI pressure at the tool tip to achieve the required cutting capacity for their materials. The Vector®
waterjet cutting system is available in two standard sizes: 6' x
10' and 8' x 12' with a 2' or 3' mast. |

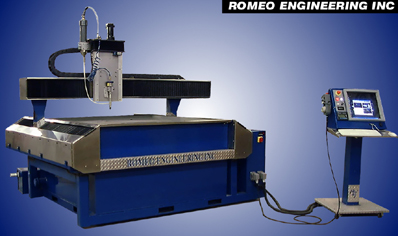

Manufacturer of Super-Accurate WaterJet Cutting Systems, Aerospace Composite-Fab Machines, Industrial Automation, & Military Ordinance Assembly Systems. Designed in the best software using the best equipment and the highest standards. |
