Products- Comp-U-Shear Shear Gauging -

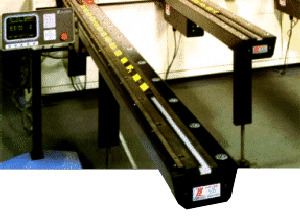

Comp-U-Shear 3000 144-60-60

Gauge Distance Sq 6" - 144", Side 6" - 60" Gauge Repeatability ±0.001 Inch (±0.02mm) Job Programs 50 with 32 Steps in each Job and 99 Possible Repeats for Each Step Battery Back-Up (2AA Alkaline Batteries) Squaring Arm Length 139" Side Arm Length 79" Input Power 110 VAC ±10%, 10 AMPS MAX. 2,500lb Table Load Capacity Gauge Resolution 0.001 Inch (0.01mm) Accuracy .002"/12" (.05mm/300mm) In/mm Displays Software Selectable Operating Temperature 0°-50°C (32°-122°F) Air Supply 60 - 90 PSI 3/8 N.P.T.
